Product Description
XFP modules are hot-swappable and protocol-independent. They typically operate at near-infrared wavelengths (colors) of 850 nm, 1310 nm or 1550 nm. Dual LC type pluggable optical interfaces; hot-pluggable; the metal shell shielding electromagnetic interference; in line with the RoHS standard; wide compatibility; support digital diagnosis function; the working temperature range of -5 DEG -70 DEG: optical module conforming to XFP MSA standard and IEEE802.3ae standard is designed for optical fiber data communication field of 10 Gigabit Ethernet ultra high speed. Transmission rate of the model provided by 11.1Gbps to get rid of the traditional Ethernet can only be applied to the LAN range limits, the scope of application of Ethernet extend to metropolitan area network and wide area network. The maximum distance to cover 80 kilometers.
Performance Feature:
1, Compliant with XFP MSA Rev.4.0
2, XFP 10 Gigabit Transceiver Description
3, 850nm/1310nm/1550nm laser diode transmitter
4, Support 9.95Gb/s to 11.3Gb/s (data rate: 10 gigabit)
5, Below 2.5W power consumption
6, 10G XFI interface
7, XFP MSA package with duplex LC connector
8, With Digital Diagnostic Monitor Interface
9, Standard operating temperature range 0°C to 70°C
10, No reference clock requirement
11, Hot-pluggable
12, Good EMI, RoHS compliant
Application:
10G Ethernet
10G link network
Fibre Channel
CPRI and OBSAI
Quality Certification:
Good Anti-electromagnetic interference (EMI)
Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates

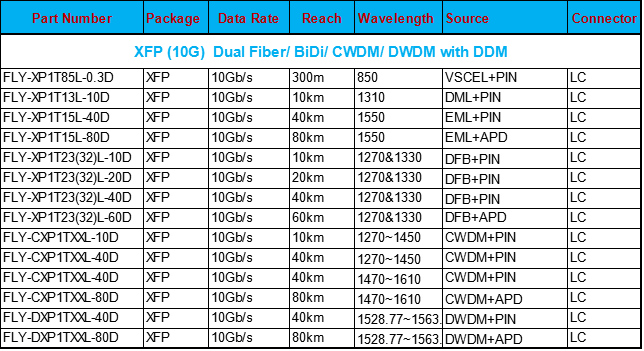

Order information:
